Device type: Digital Multi Channel Analysers

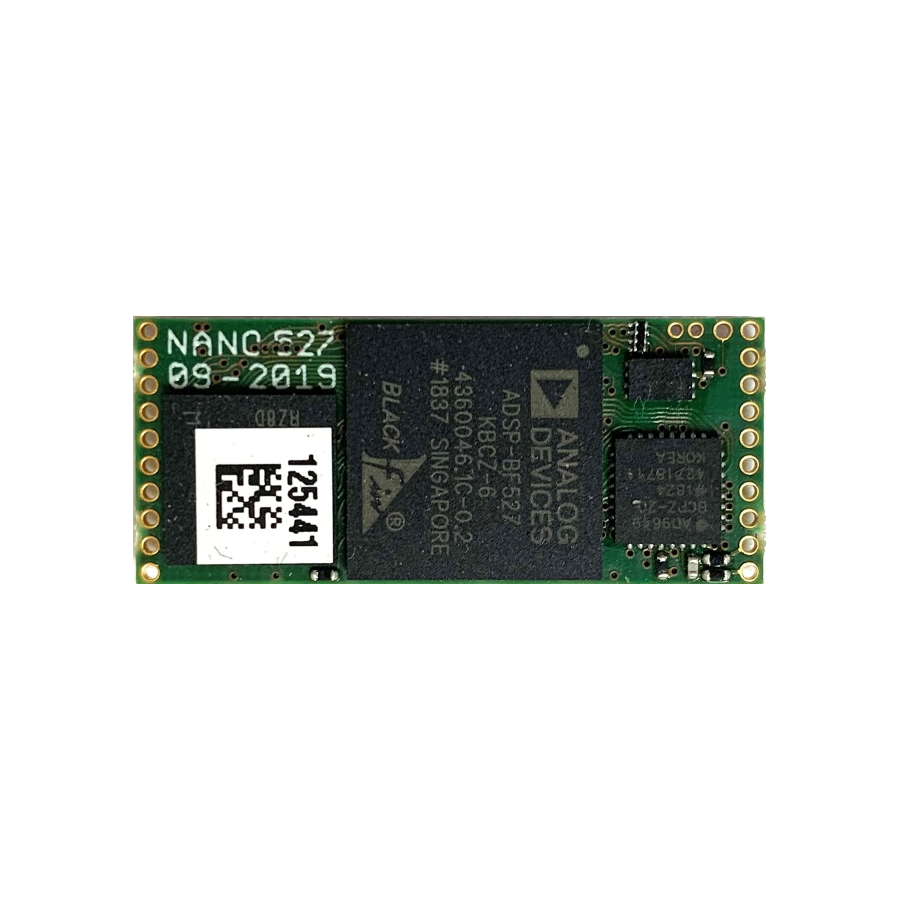

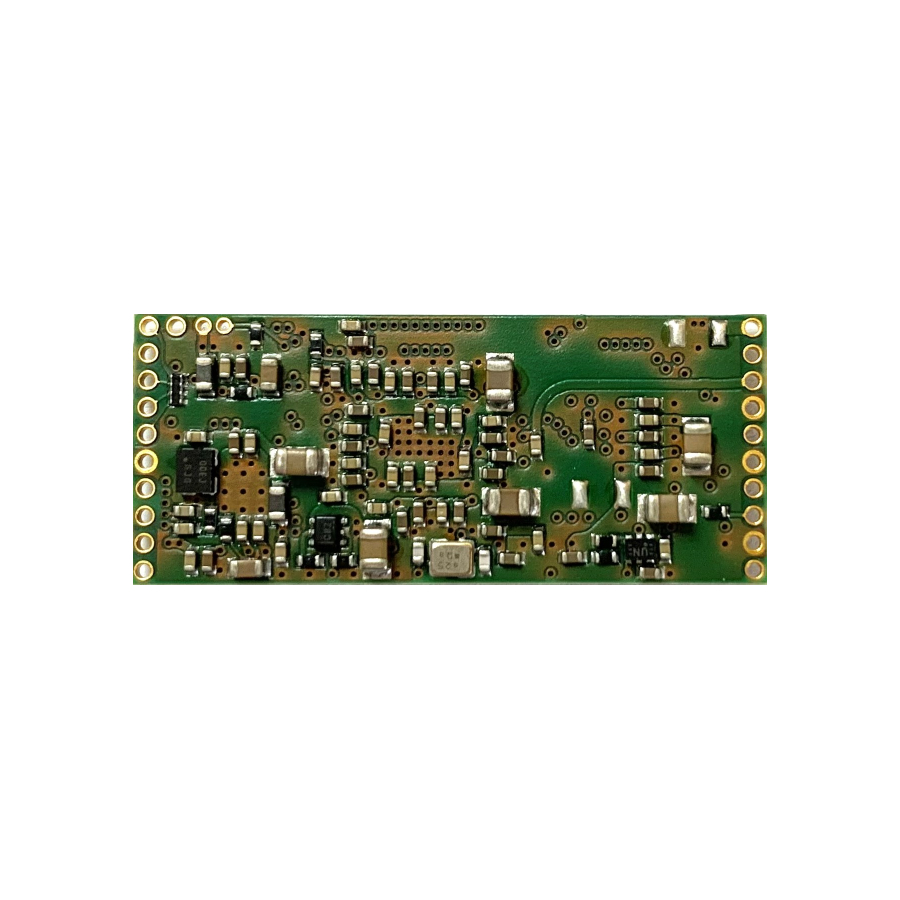

The MCA527 nano / nano+ is an ultra-small multi-channel analyzer for applications with very limited space and requirements for low power consumption. In conjunction with a detector and a preamplifier it is possible to realize an ultra-compact spectrometer. Several MCA527nano can be combined to form a high-performance spectrometer. The standard version has a 4k channel resolution. The MCA527nano+ version is intended for high-resolution systems and has a channel resolution of up to 16k as well as additional operating modes.
Dimensions: 30mm x 12.8mm x 3mm
Weight of the PCB: 2g
Operating temperature: -40°C to 70°C
Relative humidity: up to 90%, non condensing
Protection class: IP00, EMC compliant
Extendes Datasheet MCA527nano /nano+
MCA527 List Mode Informationen
Additional Software and Firmware Updates can be found in our download section >>
