Circuit Board Assembly

From the development to the finished circuit board

We are your competent partner for the cost-effective assembly of printed circuit boards. Depending on your requirements, we take over your order from development to the finished circuit board.

Our offer includes:

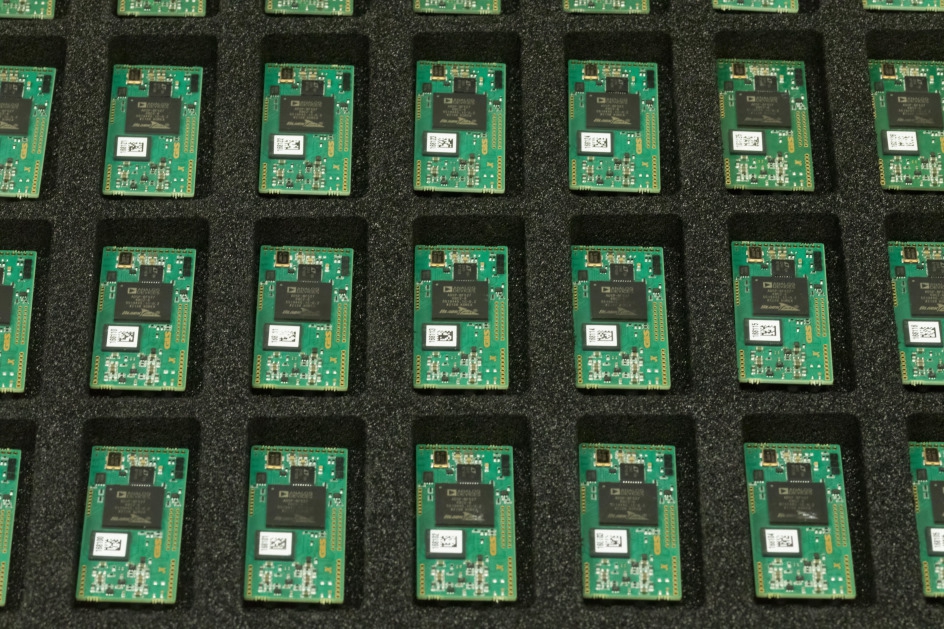

Assembly of circuit board prototypes and small series

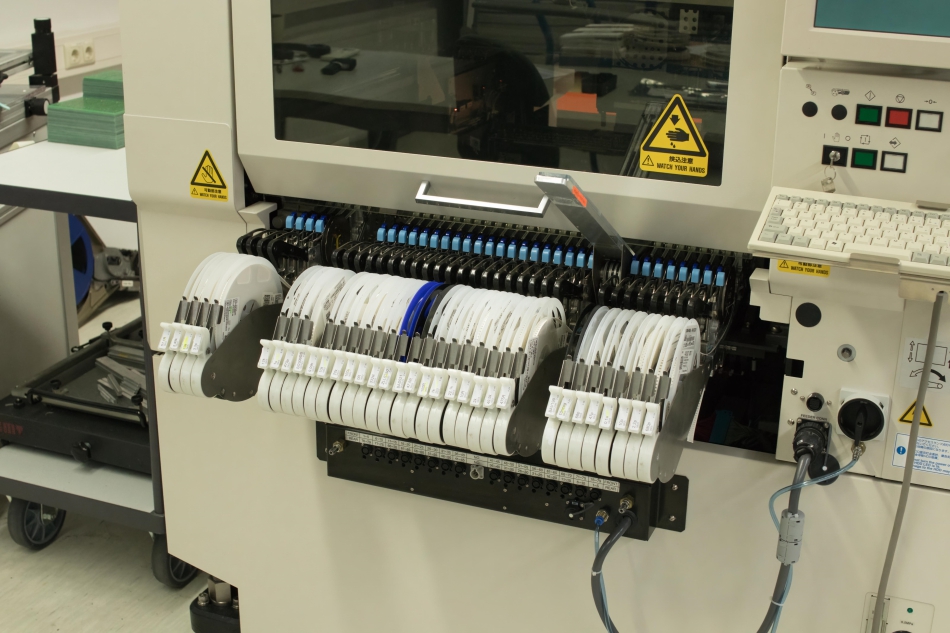

SMD mounting on one or both sides
SMD component size from 0402
Reflow soldering
Vapor phase soldering
THT hand assembly
THT wave soldering
Mixed equipment THT and SMD
Manual optical quality control

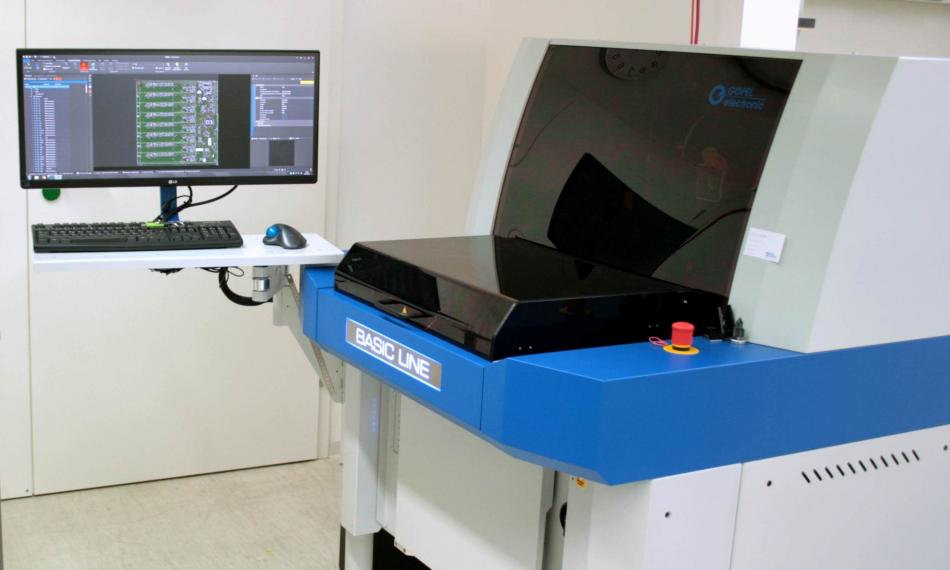

Automatic optical quality control (AOI-System)

Procedures

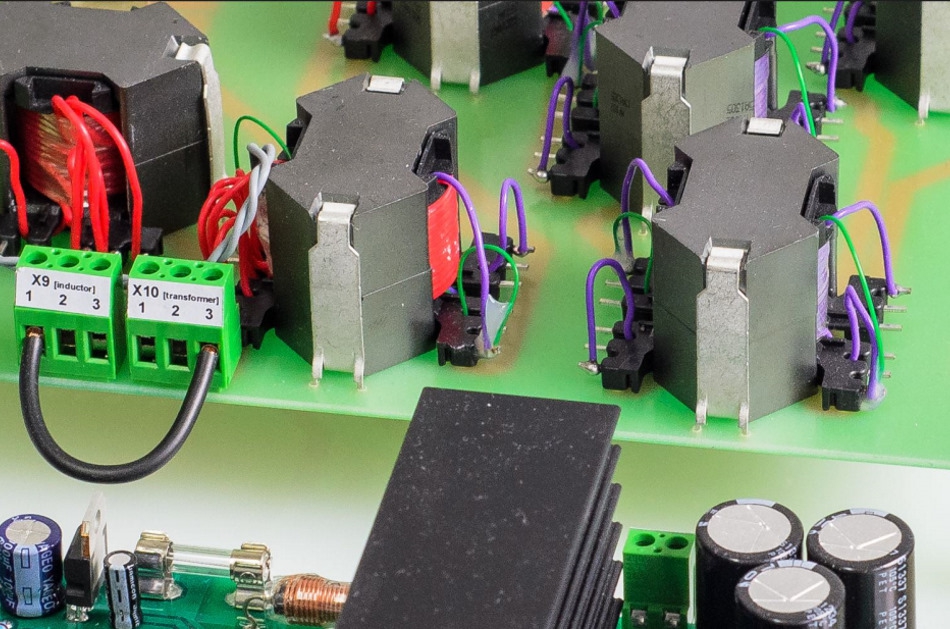

THT (Through-Hole Technology)

In this method, wired electronic components are inserted and soldered through contact holes in the printed circuit board. Soldering is done by hand or via a surge.

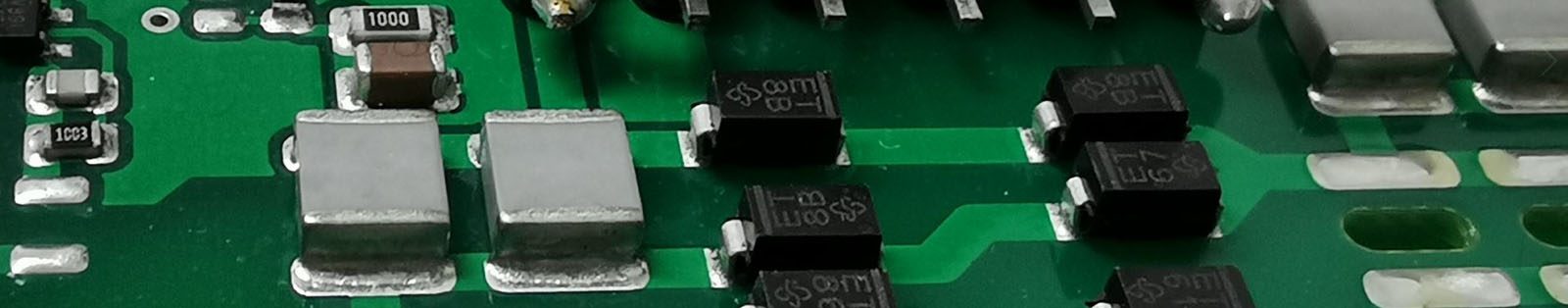

SMD (Surface Mounted Device)

During surface mounting, SMD components are soldered directly to the circuit board using solderable contact surfaces. This makes it possible to achieve a very dense configuration and, above all, a double-sided mounting of the printed circuit board.

Mixing equipment

THT and SMD components are combined.
