Device type: Digital Multi Channel Analysers

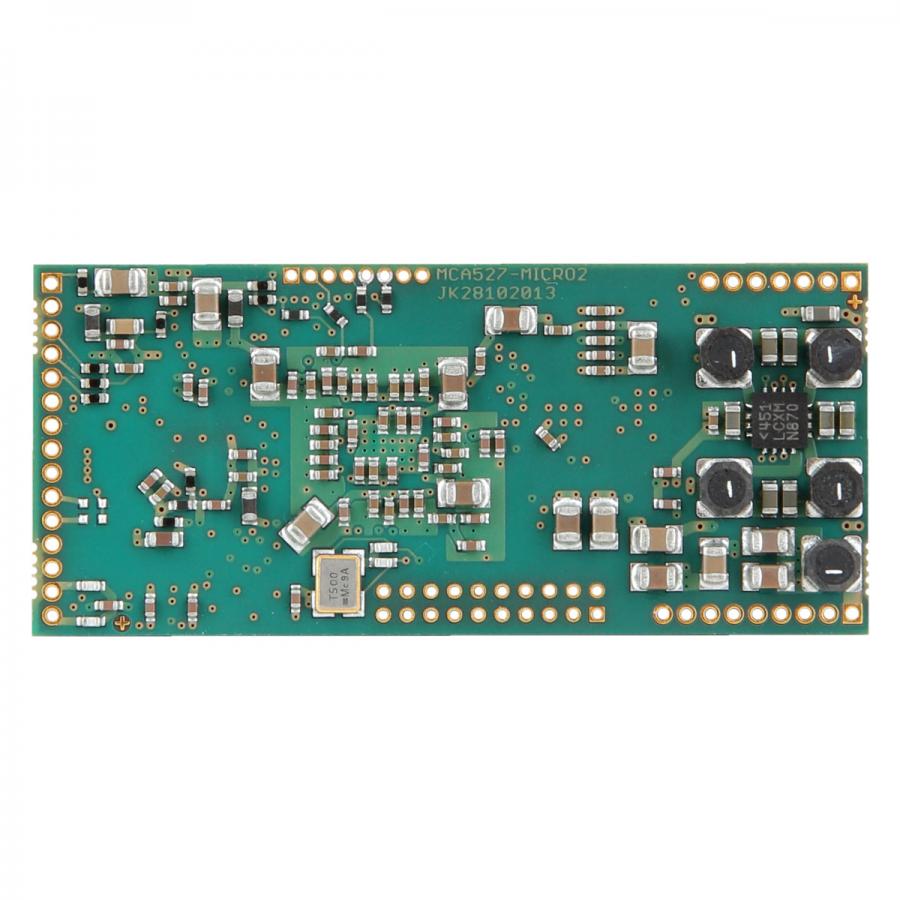

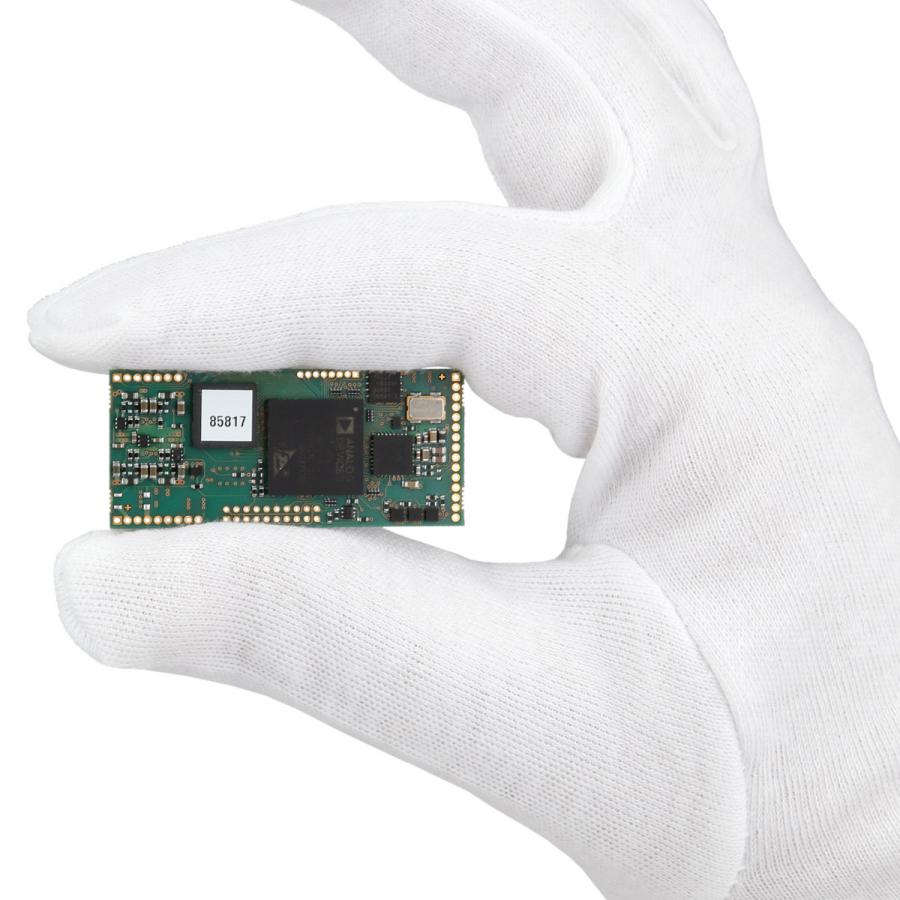

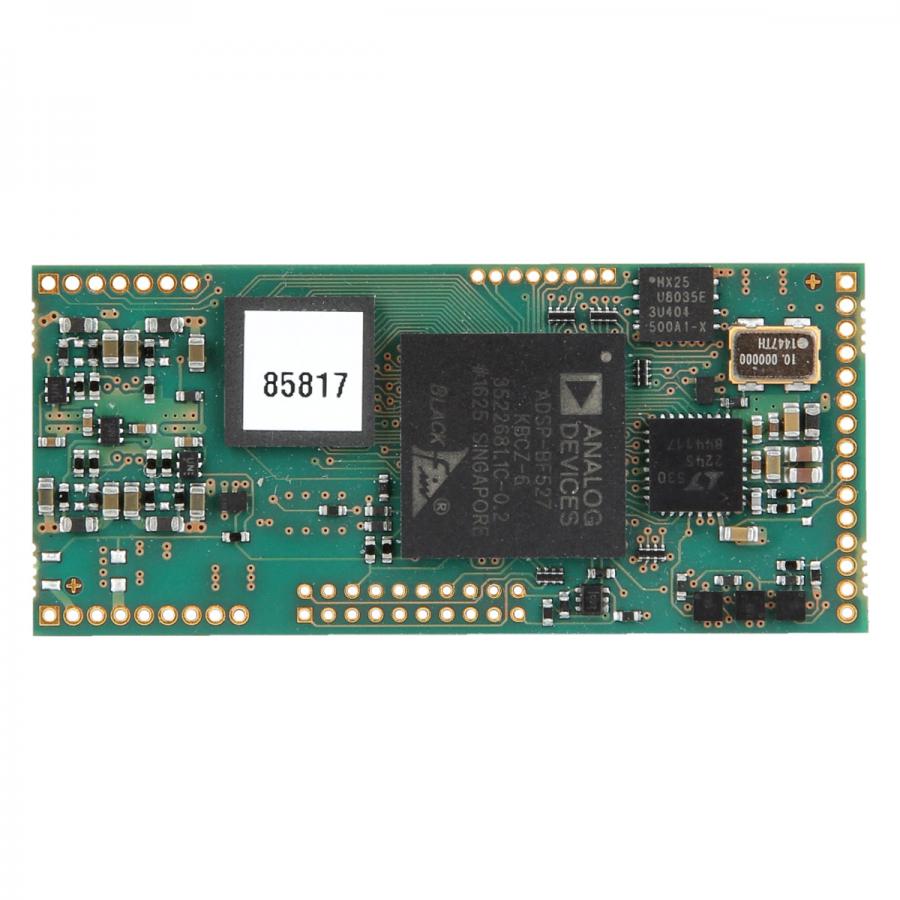

The MCA527 microE /microE+ is a cost-efficient, very low power consuming multichannel analyzer PCB in micro format. It is designed for the direct integration into detector housings. The PCB offers various communication interfaces like RMII (Ethernet) and TTL UART. The MicroE+ version can operate with up to 16k channel resolution and has some more operation modes.
Dimension 45mm x 20mm x 5mm
Weight of the PCB 5g
Operating temperature 0°C - 50°C
Relative humidity up to 90%, non condensing
Protection class IP00, EMC compliant
Datasheet MCA527 microE /microE+
Extended Datasheet / Add - on Guide MCA527 microE /microE+
Additional Software and Firmware Updates can be found in our download section >>
