Multi Channel Analyzer

MCA527

Device type: Digital Multi Channel Analysers

The MCA527 is the successor of the MCA166 and is equipped with highly developed hardware. The digital design allows higher throughput, a greater variability in parameter settings and a wider application range. The MCA527 can be controlled by RS232, Ethernet and USB.

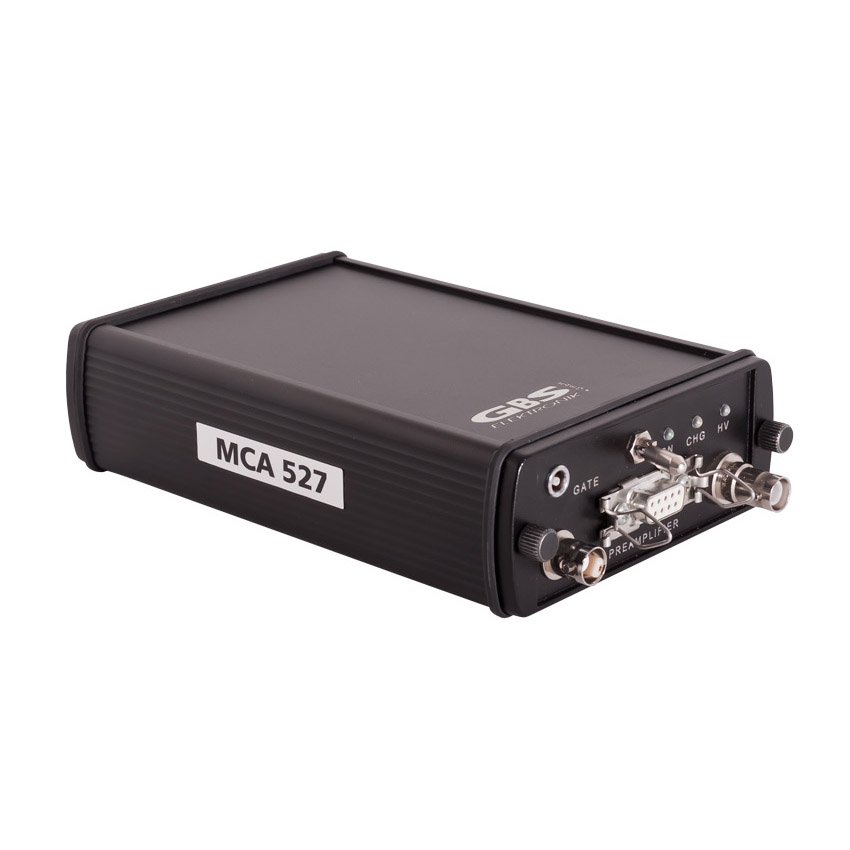

MCA527

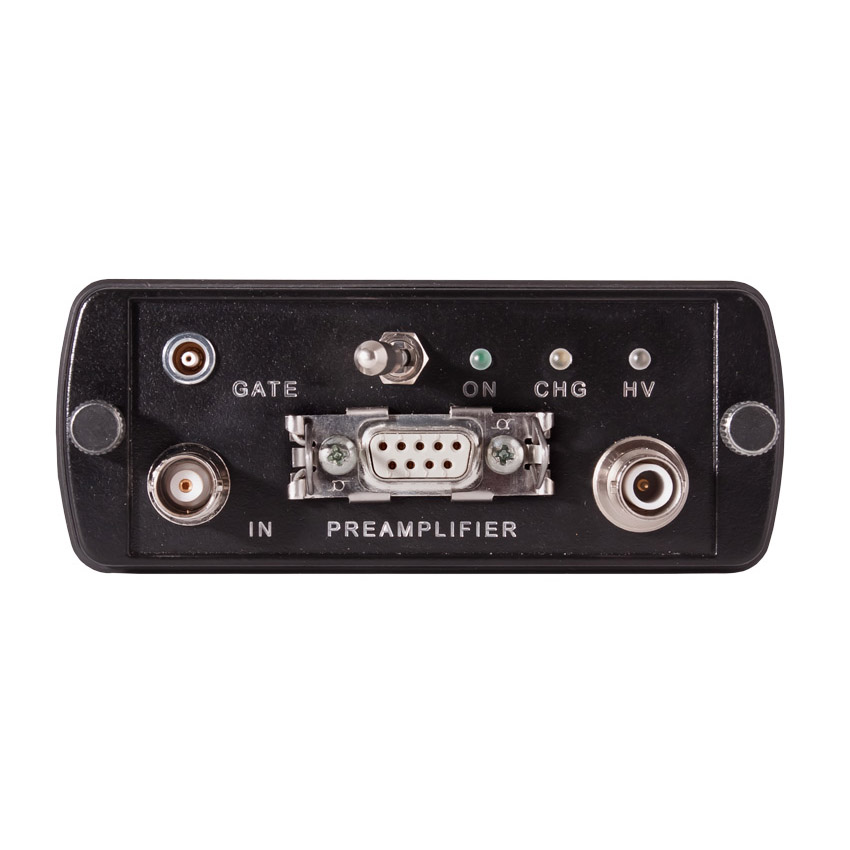

MCA527 front view

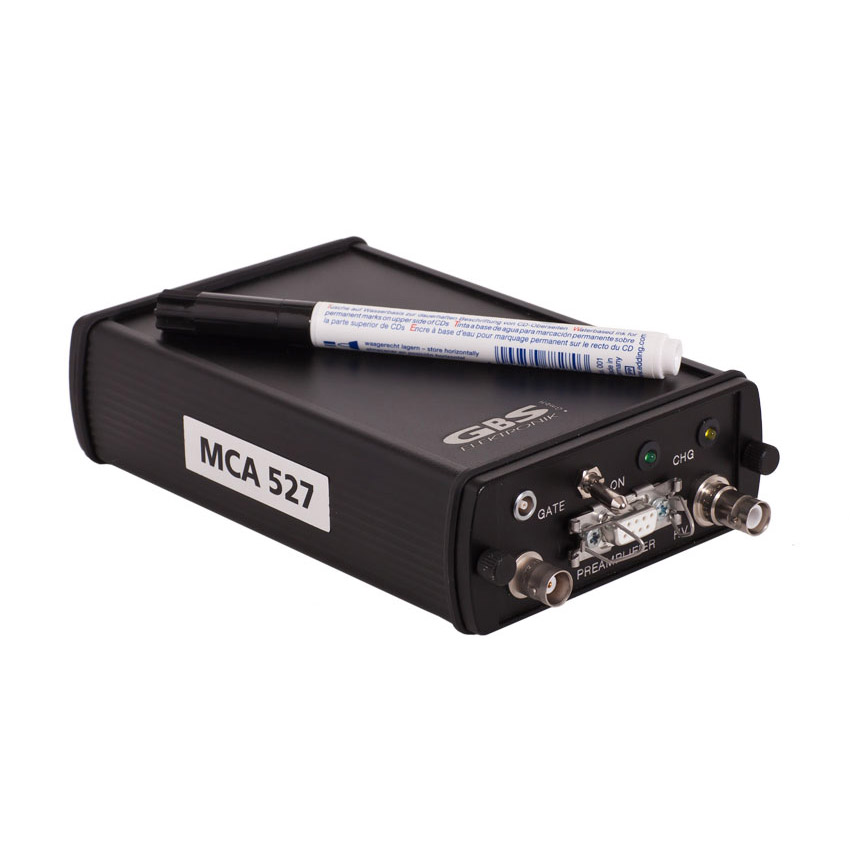

MCA527 in proportion

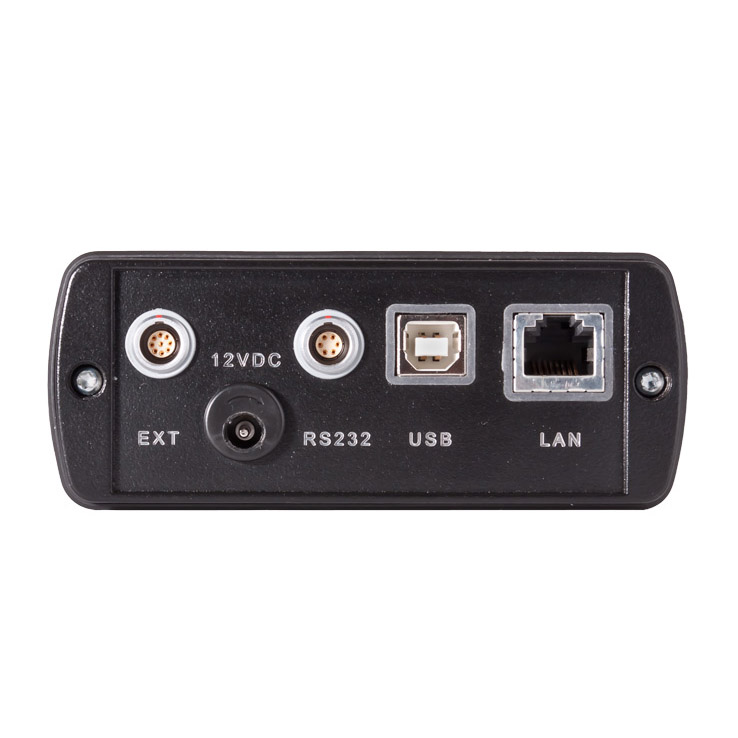

MCA527 rear view

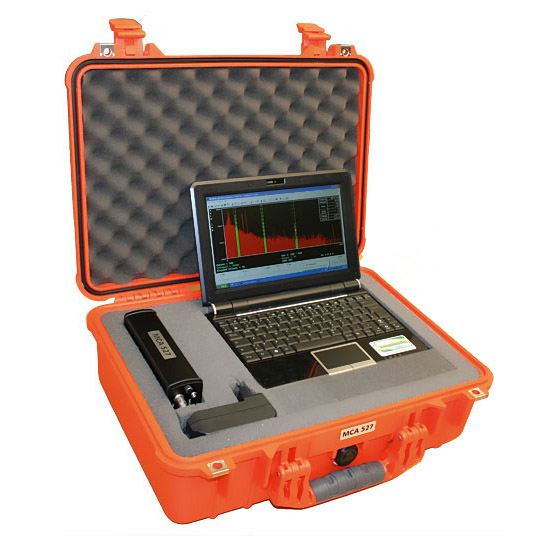

MCA527 transport case

Physical characteristics

Dimension 181mm × 111mm × 45mm

Weight of the module 829g

Weight of the charger 320g

Operating temperature 0 - 50°C

Relative humidity up to 90%, non condensing

Protection class IP42, EMC compliant

Key Features

Up to 16k Channel resolution
low power consumption of 0.6W
10-25h battery duration (depending on detector)
5 coarse gain steps
Data acquisition done with 14bit ADC @10MS/S
Automatic spectra recording
Peak stabilization
Power Supply for Preamplifier: ± 12V and ± 24V, 60mA
Modular high voltage power supply: up to ± 3600V or up to ± 5000V with special HV module.
D-SUB9 connector for preamplifier supply, BNC for signal, SHV for high voltage and Lemo00 as gate input
Upgrade on list modes (useable as a multiplicity or neutron coincidences counter)
Solid eloxed aluminum housing with rubber seating

Downloads for MCA527

PDF MCA527 Datasheet

PDF MCA527 Datasheet for the application as neutron coincidence counter

PDF MCA527 User Manuel

PDF MCA527 Accessories

PDF MCA527 List Mode Information

PDF Important USB cable information

Additional Software and Firmware Updates can be found in our download section >>
